Animatronic Raven

Quoth this Raven whatever you want him to.

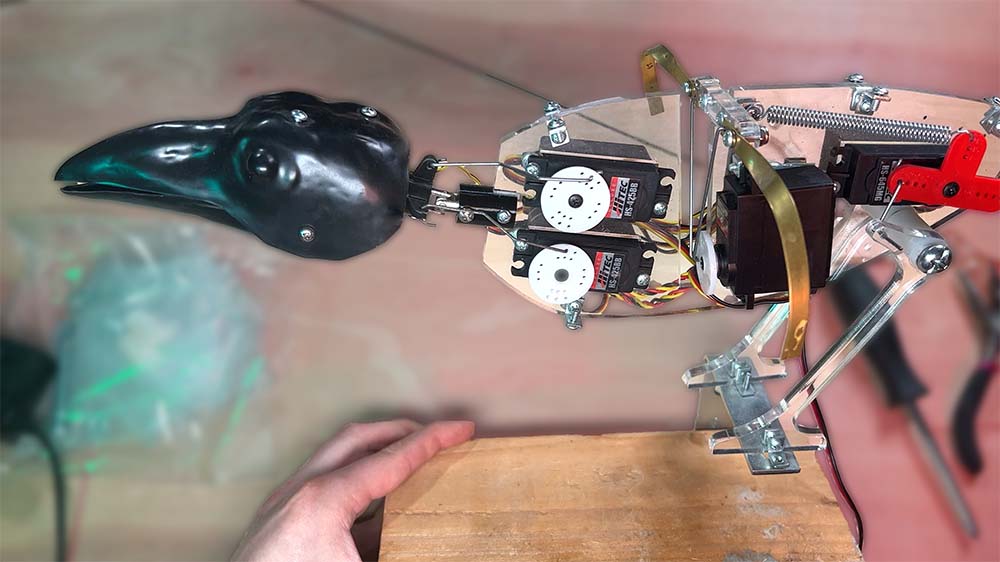

Build your own servo powered Animatronic Raven!  Watch the video to see it in action.

Raven Kits are currently sold out until 2022.


Available in the Basic Kit with all necessary mechanical and finishing components except the servos, or the Deluxe Kit with servos included.  Free shipping in the US (international customers should contact before purchasing at chickenhaunt@gmail.com).


Select Kit

Recommended servos are Hitec HS-53 x1, HS-425BB x3, HS645MG x1.  These are included in the Deluxe Kit.

IMPORTANT: While the Raven Kits are designed to be easy to build, some basic experience with servo-driven projects is recommended.  Kits do not include a controller or power supply for the raven.  You will need a servo controller to make the raven work. If you do not have a system yet, the simplest solution I can recommend to get your bird moving is the Pololu Mini Maestro.  For more advanced programming and routines, I suggest Visual Show Automation software and a compatible board (such as the SSC-32).  A 6v 5A DC power supply is recommended.  Because you build the Raven yourself, there is no guarantee or warranty on the kit components.

Kit Contents


Note: 2021 kits contain an update to the design that is not yet be shown in the tutorial videos.
The 1/4”-20 T-nuts on the hips (starting at 9:53 in the “Part 2” video) have been eliminated, and the white nylon spacers included in the new kits are longer to compensate. This makes for much easier assembly and smoother operation.

Join the Group on Facebook to connect with other Builders here.


Step-by-step how to videos





Resources: Find useful documents related to building your Raven here.
